Download Specs

GETTING TO THE WAREHOUSE

Stage door and load in entrance is at side of venue (Alphonsus Street). Parking is on street at stage door. This is public domain, but venue is usually able to block off required space. (Please advise vehicle details)

LOAD-IN

No Stairs/ Steps! Load-in through double doors into Venue, then lift onto stage (1m high)

PRODUCTION CONTACTS

House Tech Manager – Liam Marley +353 (0)83 1947959 liam.marley@gmail.com

SCHEDULE - (Typical)

Artist Arrival – 1700 (earlier by arrangement - Please advise Liam of your arrival time at least 2 days in advance of show)

Soundchecks - 1800

Doors – 2000 / 2100

TECHNICAL SPECIFICATION

STAGE DIMENSIONS

8.5 M X 5.2 M x 1.1M 5.8 M inside PA

WAREHOUSE P.A. SPEC.

House cabinets:

4x Seeburg Acoustic Line K24 (2 X 12" / 1 X 1.4") 6x Seeburg G-Sub (1 X 18")

House amps:

1 x MC2 E90 2x MC2 E 25 1 x MC2 E15

Processing:

MC2 Ti1048 Processors

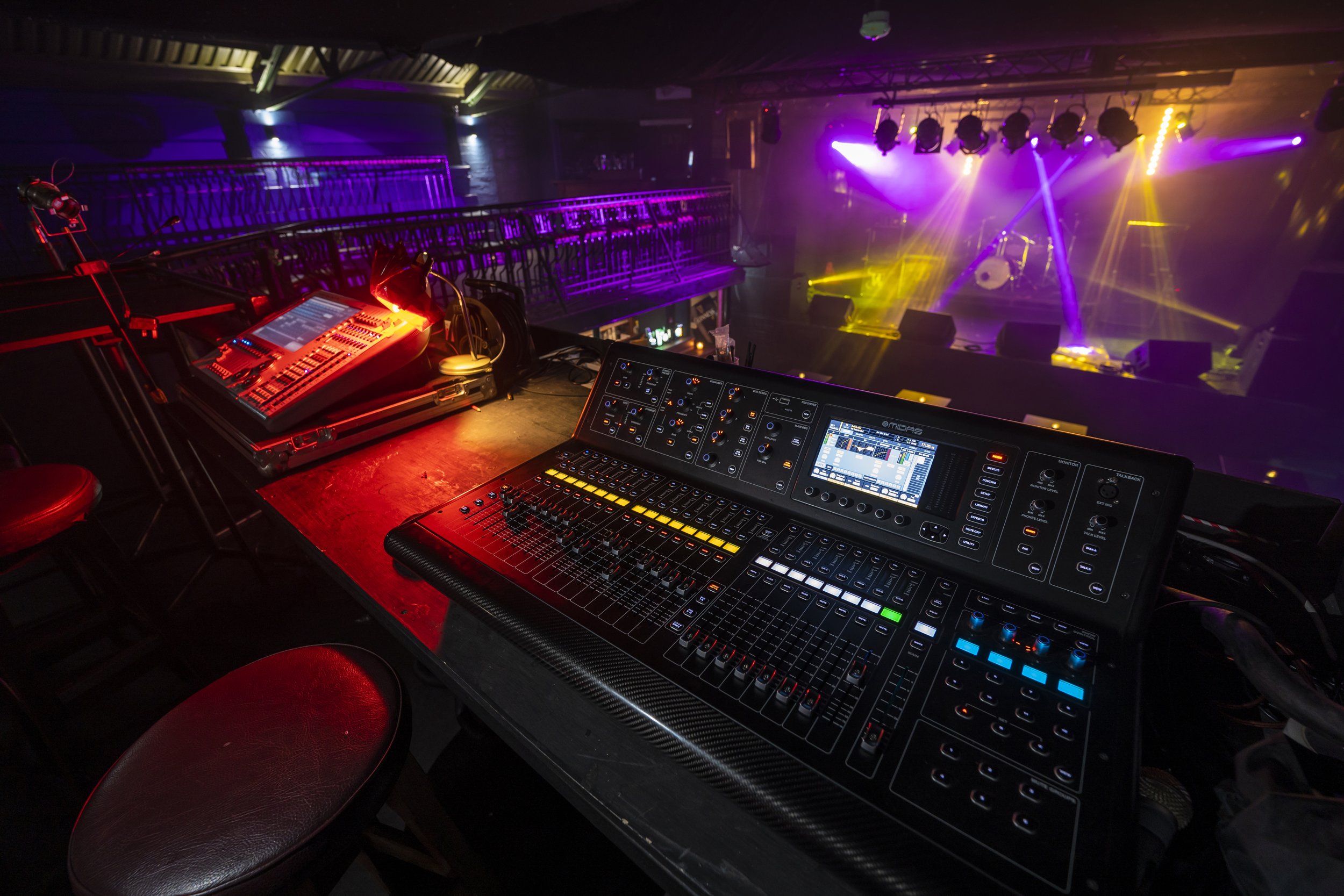

FOH console:

MIDAS M32

Integrated Stage Monitor System:

Behringer X32 (available on request)

Dynacord cl 1600 amps

4 x EAW SM400 (12x2” / 2”)

2 x EAW SM500 (15"/2")

1x EAW LA Drumfill (15"x 2 / 6.5"x 2 / 2")

Microphones by Shure, Sennheiser, Beyer, AKG, A/T and Audix Active and passive

DI boxes .

Power Available:

63amp 3 Phase Stage Right 32amp Single Stage Right

Lighting System:

6 x infinity ShowTec iB-2R

2 x ShowTec sunstrips Active

2 x ShowTec Stage Blinder 4

2 x JB Lighting led washes

16 x par 64's

1 x Cameo instant hazer 1400 pro

2 x 6 chn Beta pack 2 dimmers

1 x Tiger touch pro

Please advise well in advance if Monitor Engineer required!!!

HOUSE PRODUCTION

Liam Marley 083 1947959 liam.marley@gmail.com Intl: 00 353 83 1947959

EXTRA P.A. HIRE

Murt Whelan 0868541204 www.murtwhelansound.ie

EXTRA BACKLINE HIRE

Deci Hogan 087 8303200 Tune Me Hire
